Acoustic retaining walls are often multitaskers. They don’t just keep soil in place; they withstand fierce wind loads, mitigate environmental noise, meet strict safety performance criteria, and present an attractive, durable face to the community for decades.
Getting all those responsibilities right in a single structure takes more than standard wall-building know-how. It demands engineering precision, materials that work as hard as the wall itself, and an understanding of how structural, acoustic, and aesthetic requirements intersect.
The key responsibilities of large retaining noise walls
1. Structural and soil retention
The primary role of any retaining wall is to hold back the earth, but in large-scale projects, that’s far from simple. These walls must resist significant lateral earth pressures from the retained soil mass, plus surcharge loads from nearby traffic, heavy machinery, or buildings.
In highway or industrial settings, the forces can be substantial, especially when the retaining wall holds back several metres of fill. Engineering must account for the worst-case scenarios (such as water-saturated soils, sudden load changes, or even seismic events) to prevent movement or failure. The goal sounds simple, but it’s actually quite tricky: make sure the wall remains stable for decades, with foundations and reinforcement built to go the distance.
2. Noise mitigation
For many projects, the large retaining wall must also serve as a noise barrier, protecting surrounding communities from traffic, rail, industrial, or other noise pollution.
This role is just as critical as the structural function. The wall’s design and material selection must meet specific acoustic targets set by councils or transport authorities, reducing noise levels at sensitive receivers to acceptable limits.
That means achieving a high Rw rating (Weighted Sound Reduction Index, measured in how many decibels are blocked by the noise barrier), and in some cases incorporating an absorptive surface with a high NRC rating (a single-number rating that indicates how efficiently a surface absorbs sound).
Other key responsibilities include:
- Wind resistance – Tall walls face significant wind loads, especially in exposed or gale-prone regions. The design needs to handle combined wind and soil pressures without excessive deflection or stress.
- Aesthetic integration – Big walls like these are hard to miss, which is why they should enhance the look of the area, not make it an eyesore. The right finishes, colours, and detailing can help them blend in (or stand out in the best way).
- Durability & safety – Walls must meet fire resistance requirements, withstand accidental impacts, and resist corrosion and weathering for decades with minimal maintenance.
Material used for large retaining noise walls
When we’re designing and constructing large retaining noise walls at Wallmark, we don’t lock ourselves into one type of panel or post. We choose the right combination for the job.
Hot-dip galvanised (HDG) structural steel posts
These are the backbone of the system. The galvanising protects against corrosion in harsh environments, while the post section is sized to take the combined bending from soil pressure and wind loads.
Reinforced concrete sleepers
Dense, reinforced concrete that can take on heavy lateral earth pressures, traffic vibrations, and long-term exposure to moisture without losing shape or strength.
Precast Concrete Panels
High-mass, factory-made sections that slot in cleanly, giving you consistent quality and rapid installation on site. Perfect for when you need both strength and an acoustic upgrade in one hit.
Noise Wall Panel Options
When working with Wallmark, we’ll advise you on the best materials to use for noise mitigation. Depending on acoustic targets, site conditions, and aesthetic requirements, we use:
- Steel – Tough, high-Rw panels that stand up to impact and weather. Available in Corten steel for a natural patina or powder-coated galvanised steel for lasting colour and protection.
- Concrete – Heavy, dense, and with excellent sound-blocking performance.
- Recycled rubber – Manufactured from recycled materials for projects where sustainability is a key driver, without compromising on structural or acoustic performance.
- Lightweight – Great where traditional noise barriers are too costly, heavy, or time-consuming to install. Wallmark has specialised lightweight options that deliver high Rw ratings, like AcoustX, Dunewall, and Urbanwall. Check out our resources for more info.
Every combination we design is engineered to meet Australian Standards for both structural and acoustic performance, backed by ISO-certified processes so you know it’s built to last.

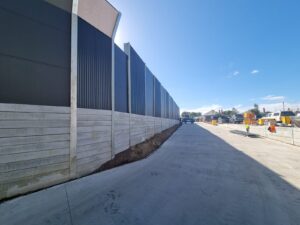

Case study: Coles Sebastopol
A standout example of our large retaining walls in action is our Coles Sebastopol project in regional Victoria. The development site required a wall that could do it all:
- Retain substantial level differences on a commercial property
- Protect surrounding residents from operational noise
- Maintain a high-quality appearance befitting a major retail centre.

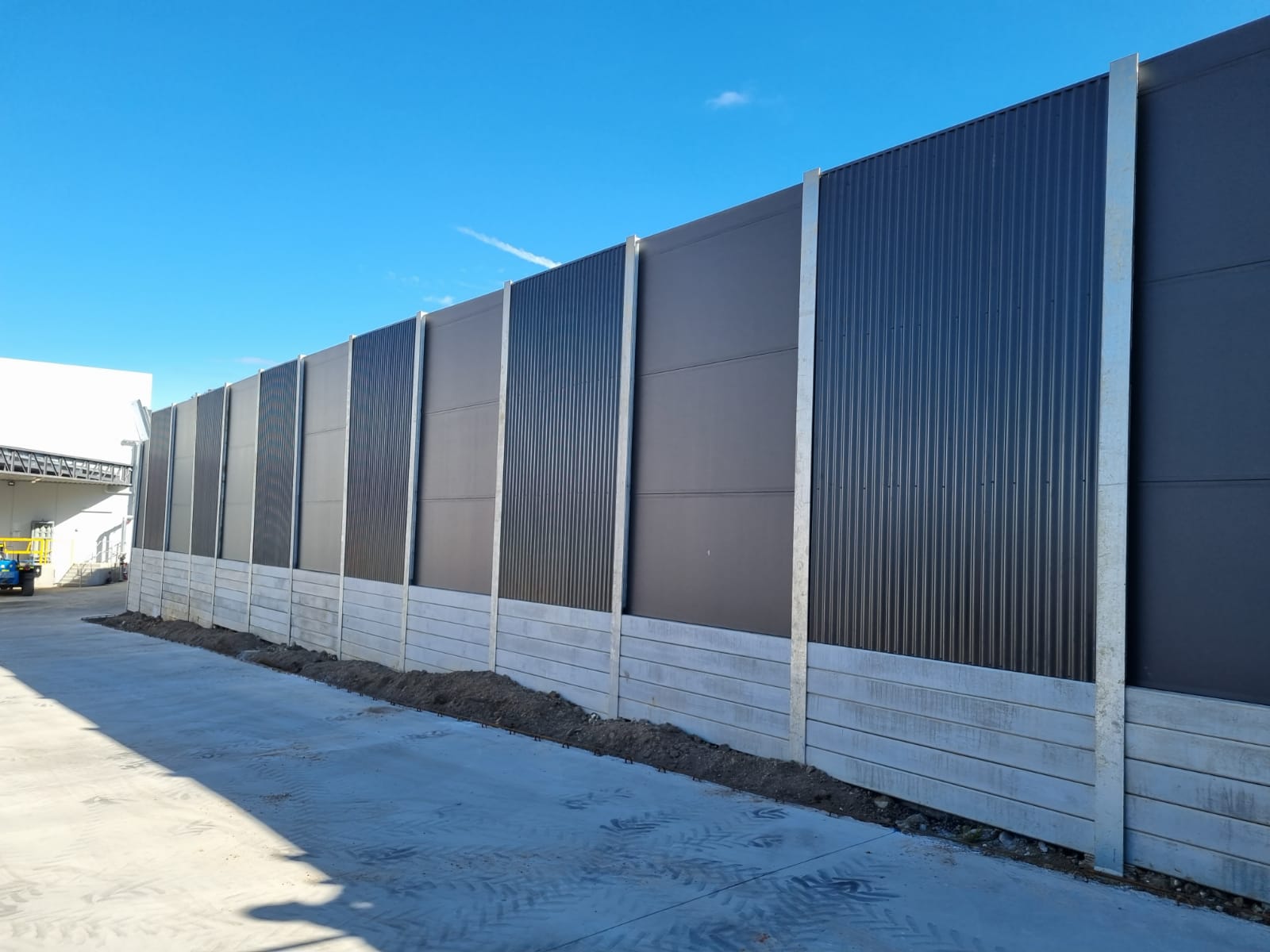

Our team designed and installed reinforced concrete panels at the base for soil retention, topped with Wallmark’s ZorbX wall system to reduce noise from deliveries and plant equipment..
By delivering a retaining noise wall system that met every requirement – structural, acoustic, and aesthetic – we ensured the client could maximise usable space on the site while keeping neighbours happy and meeting council approval.
👉Read more about the Coles Sebastopol project.
The Wallmark advantage for large retaining walls
At Wallmark, we design and manufacture systems specifically for the complex, multi-role demands of large retaining walls with noise mitigation. Our noise wall solutions are:
- Australian-made and tested for local conditions.
- Fully compliant with Australian standards with proven Rw performance.
- Pre-engineered for various heights, wind regions, and retaining capacities.
- Customisable in finish, colour, and security features.
A retaining noise wall does more than just hold back soil; it’s a hardworking piece of infrastructure that has to handle multiple jobs at once. It needs to stand up to earth and wind loads, cut down noise, and still look good while doing it.
Wallmark tailors noise wall solutions for your unique site and situation. If your project needs a large retaining wall, browse our retaining wall solutions or reach out to our team. We’ll bring the expertise, the innovation, and the commitment to ensure your wall performs in every role it’s given.
